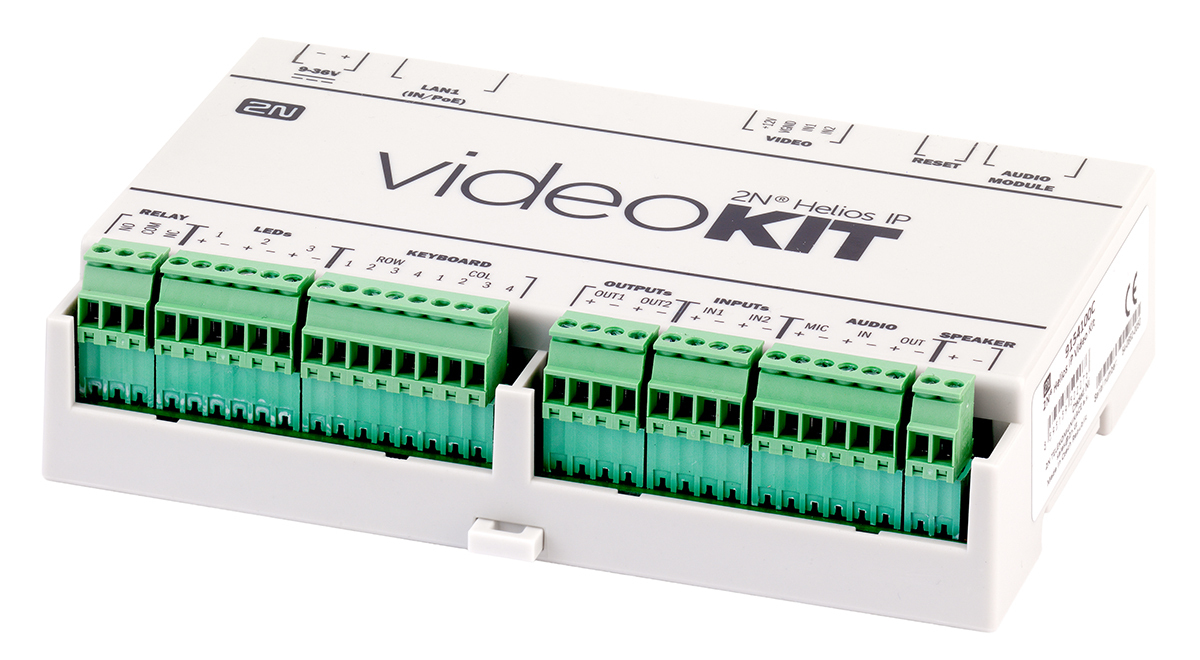

2N IP Videokit

Video surveillance for any device

The 2N IP Video Kit is ideal for manufacturers of various devices, who want to stand out from the competition. This OEM intercom, in a compact module, can enhance any device with reliable video surveillance, and as well as visual monitoring, it can expand the functionality of your product with audio communication, remote monitoring and control.

This means there is no need for manufacturers to invest in their own development, they can simply install the 2N IP Video Kit intercom into their systems, enhancing the device with video and audio capabilities. Like all other 2N IP products, the Video Kit is not only compatible with switchboards made by global manufacturers, but also video surveillance systems.

The Kit comes with connectors for two analogue cameras with composite PAL/NTSC output, which you can use for video surveillance. Communication is enabled by SIP 2.0 protocol. In addition to this, thanks to a number of interfaces, it’s easy to connect buttons, keypads and keyboards, LED indicators, a microphone and speaker or even headphones to the 2N IP Video Kit video intercom.

Highlights:
VoIP communication via SIP 2.0
- Simple electrical installation and set up via web interface
- SIP rear electronics with Ethernet connection
- Connection for 2 analogue cameras
- Integration with video surveillance systems via ONVIF
- Use of LAN/WAN networks for administration, communication and control via web browser
- Connecting up to 16 buttons, inputs and outputs for one-site control
- Power supply via adapter or PoE (Power over Ethernet)
- Full duplex
- VoIP communication via SIP 2.0
- Simple electrical installation and set up via web interface

DOWNLOAD Data sheet (IP version)

DOWNLOAD Installation Manual (IP version)

DOWNLOAD Configuration Manual (IP version)

DOWNLOAD Licence sheet (IP version)
